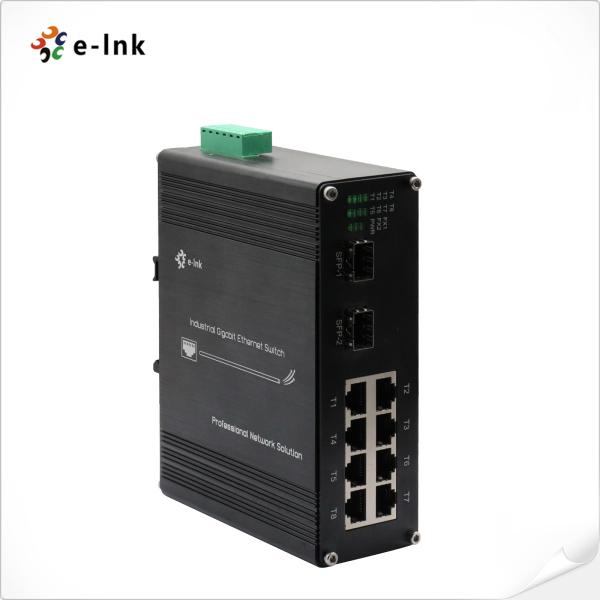

Din Rail Ethernet POE 8 TP Ports and 2 Fiber Ports SFP, SC, FC, ST Optional Fiber Ethernet Switch

Brand Name : E-link

Model Number : LNK-IMC208

Certification : CE,FCC,RoHs,ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiate

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pcs/per month

Delivery Time : 7 working days

Packaging Details : Industrial Ethernet Switch Standard Export Package

Connector : 8 x RJ45

Optical Port : 2 x 100Base-FX (SFP, SC, FC, ST Optional)

Ethernet Port : RJ45 Port 1 ~ Port 8

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Input Power : 12~58VDC, Redundant Power (6-pin Terminal Block)

Dimensions (WxDxH) : 150 x 115 x50 mm

Weight : 0.6Kg

Casing : Aluminum Case

Contact Now

Industrial 8-port 10/100Base-T + 2-port 100BASE-FX Ethernet Switch
Overview
The LNK-IMC208 Series is a hardened industrial Ethernet switch that delivers robust network
connectivity for demanding environments. Featuring 8×10/100Base-TX copper ports and
8×100Base-FX fiber ports, this high-density switch provides flexible deployment options for
both copper and fiber networks.
Key features include:
- RJ45 copper ports supporting 10/100Mbps auto-negotiation, full/half-duplex operation, and
auto MDI/MDI-X crossover
- Fiber optic ports compatible with single-mode or multi-mode fiber (1 or 2 core) for extended
reach up to 2km (multi-mode) or 20km/40km (single-mode)
- Industrial-grade reliability with wide operating temperature range and hardened construction
Designed for mission-critical applications, the LNK-IMC208 is ideal for:
- Industrial automation control systems
- Large-scale IP surveillance networks
- Distributed wireless access point deployments
- Remote site connectivity solutions
With its high port density and dual-media connectivity, this switch offers exceptional flexibility for
creating resilient network infrastructures in harsh environments. The ruggedized design ensures
reliable operation while the fiber optic ports provide electrical isolation and noise immunity for stable
long-distance communications.
Features

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports Wall-mount and DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► 8 10/100Base-TX + 2 100Base-FX
►10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Application
Din Rail Ethernet POE 8 TP Ports and 2 Fiber Ports SFP, SC, FC, ST Optional Fiber Ethernet Switch




















Technical Indexes

Ethernet
Standards:IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3x Flow Control
Forward & Filtering Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
Packet Buffer Memory:512K bits
Processing Type:Store-and-Forward
Address Table Size:1024 MAC Addresses
Interface
Connector:8 x RJ45
Optical Port:2 x 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet PortRJ45 Port 1 ~ Port 8
Environmental
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Electrical and Mechanical
Input Power:12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:5W Max.
Protection:
Power Input Overload:Automatic Resettable
Reverse Polarity:Present
LED Indicators:
Power:Power1, Power2 Status
Ethernet (Per Port):Link/Activity
Fiber:FX1, FX2
Dimensions (WxDxH):150 x 115 x50 mm
Weight:0.6Kg
Casing:Aluminum Case
Mounting Options:DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)





















































Ordering Information

ModelDescription
LNK-IMC208Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC208-20Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC208S-20Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC208F-20Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC208-SFPIndustrial 8-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch
SFP Options► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
